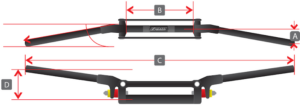

FLEXX MOTORCYCLE BEND CHART



Sweep – Dimension “A”

Shown in degrees / millimeters

Mid-Section Width – Dimension “B”

Enduro / Adventure bends will have 1″ narrower (B) measurement than MOTO Bends (7.25″ vs 8.25″)

Overall Width – Dimension “C”

Measured from handle end to handle end in inches

Height – “D”

Standard / High / Low measured in millimeters



Flexx Handlebar Notations and Definitions

  • – Cross Reference bar chart Please see the bottom of the page for a complete cross reference list of popular bar bends from other manufactures as well as OEM offerings. Please email or call us if you don’t see the bend cross reference you are looking for or you need help choosing the correct bend.
  • – Damper Crossbars Arched crossbars to accommodate over the bar steering dampers. Damper Crossbars can be added to any Flexx Handlebar. Sub/Fender Mount dampers do not require use of damper crossbars.
  • – Enduro Bends Our Enduro bends have a 1″ narrower mid section shown as measurement (B) with full length handles of our Moto bend, providing plenty of room to trim to your desired width.
  • – Handle Length All Moto and Enduro bends offer 9” of handle room over an inch more than a traditional 7/8″ or taper style bar. Adventure bends offer 10″ of handle room.
  • – Accessory Applications Flexx Handlebar can be used with enduro computers, trip computers, GPS, steering dampers, roll charts, etc., etc. We offer a dash in our store section that will easily accommodate most GPS.
  • – Super Tenere/Adventure Bends The Super Tenere/Adventure bends are built on our narrow center section with longer handles, offering a full 10inches of handle room, easily accommodating all of your stock controls. We recommend Tenere customers use a threaded bar weight anchor to mount their stock bar weight/end caps. We offer threaded bar anchors in our store.  Any sweep can be built as a Tenere/Adventure bend.
  • – Low Bar Low Bar-The Low bends are incredibly low at 63mm of height. Low bends require 19mm of clearance between the bottom of the bar and the top of the fork caps. Low bends are designed to used with a under bar damper, bringing the bar height down to 10mm lower than stock height in most applications.
  • – All Flexx Handlebars require a 1 1/8″ bar clamps.
  • – All bars are shipped with silver bar pads – many other colors are available.





HANDLEBAR BEND OPTIONS

10 Degree Bends (A) Sweep (C) Width (D) Height Part Number
10° Moto Low 10° / 40 32 62 FL-1000-10-32
10° Moto – 2003-2008 KTM 10° / 40 32 92 FL-1001-10-32
10° Moto Damper Crossbars 10° / 40 32 92 FL-1001-10-32SD
10° Enduro Low 10° / 40 31 63 FL-1000-10-31
10° Enduro 10° / 40 31 92 FL-1001-10-31
10° Enduro Damper Crossbars 10° / 40 31 92 FL-1001-10-31SD
10° Enduro High 10° / 40 31 116 FL-1003-10-31
10° Enduro High Damper Crossbars 10° / 40 31 116 FL-1003-10-31SD
10° Moto High 10° / 40 32 116 FL-1003-10-32
10° Moto High Damper Crossbars 10° / 40 32 116 FL-1003-10-32SD
10° Mini High 10° / 40 29 116 FL-1002-10-29
10° Mini High Damper Crossbars 10° / 40 29 116 FL-1002-10-29SD
10° Mini Low 10° / 40 29 63 FL-1000-10-29
10° Mini 10° / 40 29 92 FL-1001-10-29
10° Mini Damper Crossbars 10° / 40 29 92 FL-1001-10-29SD
12 Degree Bends (A) Sweep (C) Width (D) Height Part Number
12° Moto Low 12° / 54 32 63 FL-1000-12-32
12° Moto 12° / 54 32 92 FL-1001-12-32
12° Moto Damper Crossbars 12° / 54 32 92 FL-1001-12-32SD
12° Enduro Low 12° / 54 31 63 FL-1000-12-31
12° Enduro 12° / 54 31 92 FL-1001-12-31
12° Enduro Damper Crossbars 12° / 54 31 92 FL-1001-12-31SD
12° Enduro High 12° / 54 31 116 FL-1003-12-31
12° Enduro High Damper Crossbars 12° / 54 31 116 FL-1003-12-31SD
12° Moto High 12° / 54 32 116 FL-1003-12-32
12° Moto High Damper Crossbars 12° / 54 32 116 FL-1003-12-32SD
12° Mini High 12° / 54 29 116 FL-1002-12-29
12° Mini High Damper Crossbars 12° / 54 29 116 FL-1002-12-29SD
12° Mini 12° / 54 29 92 FL-1001-12-29
12° Mini Damper Crossbars 12° / 54 29 92 FL-1001-12-29SD
12° Mini Low 12° / 54 29 63 FL-1000-12-29
14 Degree Bends (A) Sweep (C) Width (D) Height Part Number
14° Moto Low 14° / 57 32 63 FL-1000-14-32
14° Moto 14° / 57 32 92 FL-1001-14-32
14° Moto Damper Crossbars 14° / 57 32 92 FL-1001-14-32SD
14° Enduro Low 14° / 57 31 63 FL-1000-14-31
14° Enduro 14° / 57 31 92 FL-1001-14-31
14° Enduro Damper Crossbars 14° / 57 31 92 FL-1001-14-31SD
14° Enduro High 14*/57 31 116 Fl-1003-14-31
14° Enduro High Damper Crossbars  14*/57 31 116 FL-1003-14-31SD
14° Moto High 14° / 57 32 116 FL-1003-14-32
14° Moto High Damper Crossbars 14° / 57 32 116 FL-1003-14-32SD
14° Mini High 14° / 57 29 116 FL-1003-14-29
14° Mini High Damper Crossbars 14° / 57 29 116 FL-1003-14-29SD
14° Mini Low 14° / 57 29 92 FL-1001-14-29
14° Mini Low Damper Crossbars 14° / 57 29 92 FL-1001-14-29
15 Degree Bends (A) Sweep (C) Width (D) Height Part Number
15° Moto 15° / 62 32 92 FL-1001-15-32
15° Moto Damper Crossbars 15° / 62 32 92 FL-1001-15-32SD
15° Enduro 15° / 62 31 92 FL-1001-15-31
15° Enduro Damper Crossbars 15° / 62 31 92 FL-1001-15-31SD
15º Enduro High 15° / 62 31 116 FL-1003-15-31
15º Enduro High Damper Crossbars 15° / 62 31 116 FL-1003-15-31SD
15° Moto High 15° / 62 32 116 FL-1003-15-32
15° BMW 15° / 62 31 116 FL-1003-15-31
15° Adventure Damper Crossbars 15° / 62 32 116 FL-1003-15-32SD
15° Super Tenere/Adventure 15° / 62 32.5 116 FL-1004-15-32.5
15° Mini High 15° / 62 29 116 FL-1002-15-29
15° Mini High Damper Crossbars 15° / 62 29 116 FL-1002-15-29SD
15° Mini Low 15° / 62 29 92 FL-1001-15-29
15° Mini Low Damper Crossbars 15° / 62 29 92 FL-1001-15-29SD
19 Degree Bends (A) Sweep (C) Width (D) Height Part Number
19° Moto 19° / 80mm 32/812 92 FL-1001-19-32
19° BMW 19° / 80mm 31/787 116 FL-1003-19-31
19° Super Tenere/Adventure 19° / 80mm 32.5/825.5 116 FL-1004-19-32.5



Popular Bends from Other Brands (Cross Reference)

Model (A) Sweep (C) Width (D) Height Comparable Flexx Handlebar
CR High 62 795 95 15° Moto
RC High 54 802 119 12° Moto High
971 54 802 99 12° Moto
RC 54 802 99 12° Moto
Windham/MC 57 803 92 14° Moto
YZF 2007-2012 62 795 90 15° Moto
Jimmy Button 67 807 110 15° Moto High
Stewart 55 805 93 12° Moto

KTM/HUSQ stock bend cross reference

KTM Item Number Model Description A Sweep C Width D Height Comparable Flexx Handlebar
548.02.001.000 SX/EXC RENTHAL 686 38 808 105 10* Moto High
548.02.001.100/17 SX/EXC RENTHAL 608 38 805 95 10* Moto
548.02.101.200/17 SX/EXC NEKEN 40 808 105 10* Moto High
548.02.001.300/17 SX/EXC RENTHAL 827 SX 39 808 95 10* Moto
548.02.001.400/17 SX/EXC NEKEN 39 808 95 10* Moto
548.02.001.300/04 SX/EXC NEKEN 37 806 90 10* Moto
590.02.001.000 SX/EXC MAGURA SX 38 808 95 10* Moto
773.02.001.100/17 SX/EXC RENTHAL SX 56 806 85 12* Moto
773.02.001.100/30 SX/EXC RENTHAL SX 56 806 85 12* Moto
777.02.001.00/30 SX/EXC RENTHAL 827 SX 52 811 92 12* Moto
780.02.001.000/17 SX/EXC NEKEN 41 808 89 10* Moto
548.02.001.000 MAGURA MX 54 808 80 12* Moto
584.02.001.100 RENTHAL 617 55 808 80 12* Moto
587.02.001.000 RENTHAL 816 62 795 95 15* Enduro
600.02.001.000 RENTHAL 792 80 775 95 19* Enduro
610.02.001.100 NEKEN 82 743 73 19* Enduro
625.02.001.000 NEKEN 74 773 83 19* Enduro
750.02.001.000 PREMETEC 34 789 104 10* Moto High
451.02.001.000 50 SX NEKEN 42 595 78 10* Mini Low
461.02.001.000 65 SX NEKEN 46 750 87 10* Mini Low
548.02.001.100 SX/EXC RENTHAL 608 38 805 95 10* Moto
548.02.001.200 SX/EXC RENTHAL 796 38 805 105 10* Moto High
548.02.001.200/17 SX/EXC RENTHAL 796 38 805 105 10* Moto High
773.02.001.000/17 SX/EXC RENTHAL 812 38 806 89 10* Moto
773.02.001.100 SX/EXC RENTHAL 672 56 806 85 14* Moto
700.02.001.000/30 FREERIDE YEU CHUEN 34 789 104 10* Enduro High
548.02.013.000/04 40 806 90 10* Moto
U6950996 50 RENTHAL 50 MINI 44 642 84 10* Mini
U6950997 65 RENTHAL65 MINI 53 740 115 12* Mini High
U6951392 RENTHAL 608 38 808 95 10* Moto
U6951393 RENTHAL 999 55 805 83 12* Moto
U6909866 RENTHAL 604 54 802 99 12* Moto
KTM 85 SX 2013+ Renthal 831 50 779 88 10* Enduro
KTM SX/SXF 09-12 Renthal 672 56 806 85 12* Moto
265.02.001.000.30 19 TE, ’17-18 FX Pro Taper made by FZ 53 800 87 12* Moto
780.02.001.000/30 16-19 EXC/XC-W 56 803 85 14* Moto
780.02.001.000/17 KTM 690/Husq 701 40 803 85 10* Moto
790.02.001.000/30 ’17+ 125- 450SX,  ’17 + 150-300XC,    ’17+ 250/350/450XC-F 57 809 77 14* Moto
603.02.101.000 KTM 1090/1190/1290 KTM FZ 19 800 105 19* Adventure
777.02.001.000/17 Neken 57 805 86 14* Moto

OEM Cross Reference





Manufacturer / Model Comparable Flexx Handlebar Notes
Beta
4 STK RR/RS Stock 10* Enduro
2 STK RR Stock 10* Enduro
Xtrainer 10* Moto
Honda
CR 85 12° Mini Requires oversize mounts
CRF 150 12° Mini Requires oversize mounts
CRFX 05-17 12° Moto Requires oversize mounts
CRF 250/450 12° Moto Requires oversize mounts
XR 400 14° Moto Requires oversize mounts
XR 650 14° Moto Requires oversize mounts
Kawasaki
KX 65 12° Mini Requires oversize mounts
KX 85/100 12° Mini Requires oversize mounts
KX 125/250 12° Moto Requires oversize mounts
KX 250/450F 12° Moto Requires oversize mounts
Husqvarna
125-501 See KTM/Husq bar chart cross reference above.
TC 65 10* Mini Low
Suggested trim width 28.5″.  Requires oversize mounts, KTM part #’s and ergonomic notes are below.
TC 50 10* Mini Low Suggested trim width 28″.  Requires oversize mounts, KTM part #’s and ergonomic notes are below.
KTM See KTM/Husq bar chart cross reference above.
03-08 SX/XC/XCW/EXC 10° Enduro
SX/SXF 09-12 10° Enduro
XC/XCW/EXC 09-12 14° Enduro
KTM 85/105 10° Enduro
KTM 65 10° Mini Low Suggested trim width 28.5″.  Requires oversize mounts, KTM part #’s and ergonomic notes are below.
KTM 50 SX 10° Mini Low  Suggested width trimmed to 28″.   Requires oversize mounts, KTM part #’s and ergonomic notes are below.
Suzuki
RM 85 12° Mini Requires oversize mounts
RM 125/250 14° Moto Requires oversize mounts
RMZ 250/450 14° Moto
DRZ 250/400/650 15° Moto Requires oversize mounts
Yamaha
Yamaha YZF/WR 02-16 15° Moto
YZF/WR 17+ 12* Moto
YZ 65/85 ’18+ 10° Mini Low



  • – KTM/Husqvarna 50/65/85 require oversize bar mounts.  KTM offers them in 3 different heights. Here are the heights and part #’s for the lower part of the bar mount: 32mm (KTM part #59401039032), 37mm (KTM part#59401039037), and 42mm (KTM part#59401039042). The lower bar mounts need to be paired with upper bar mount, part#77201038000.  We also suggest using KTM 35mm long bar mount bolts, part#0032100356S to secure the lower mounts to the triple clamp.
