TRAIL TECH VOYAGER PRO GPS KIT – KAWASAKI

Description

VOYAGER PRO GPS



THE CONNECTED RIDER’S GPS

The next evolution of Trail Tech’s most popular off-road GPS. Featuring patent pending Buddy Tracking, Bluetooth for phone and media connection, 4″ color touchscreen, and full vehicle integration. See the data that matters most to you.



Adventure Begins Here!







CLUSTER SCREEN VALUABLE DASHBOARD GAUGES Get speed from the GPS or the wheel sensor. Displays speed, temperature, distance, elevation and voltage.	TACHBAR SCREEN The tach screen is dominated by a large animated tachometer bar graph. It also displays ambient temperature, trip distance and current speed.

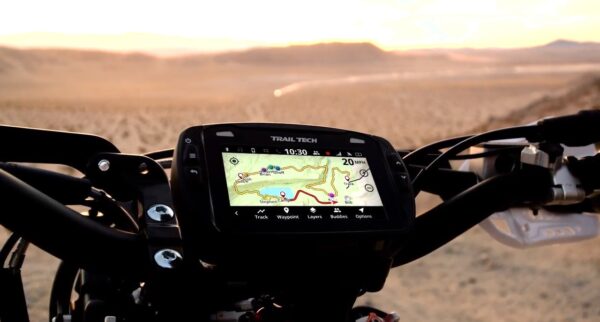

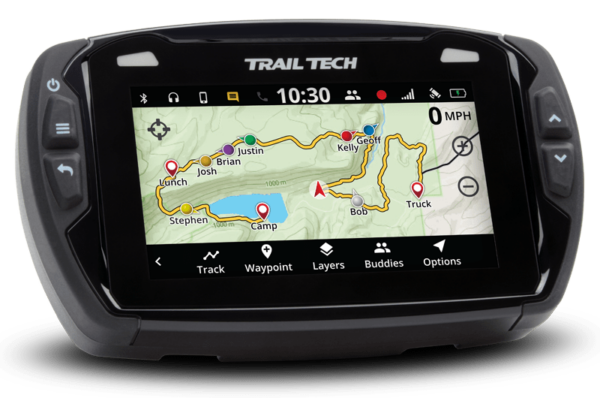

MAP SCREEN GPS MAPS WITH BUDDY TRACKING*  Color maps with topo and hillshading. Supports tracks, routes, waypoints. Plan and record entire trail systems. *Patent pending.	USER SCREEN CHOOSE YOUR OWN GAUGES The user screen is customizable. You can choose up to 6 gauge readouts from a long list of options. Select fewer gauges to make the remaining readouts larger.

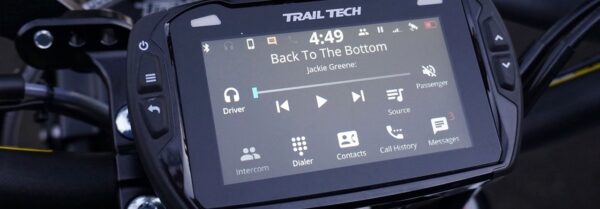

MEDIA SCREEN BLUETOOTH PHONE AND HEADSET INTERACTION You can control the song playing on your phone, change headset volume levels, change the music source, and access phone dialing, call history and messaging features. Compatible with Sena headsets.	STOPWATCH SCREEN SIMPLE LAP TIMER Tap the large circle to begin counting. Tap it again to take note of the first lap off to the side and start timing a new lap.
SATELLITE SCREEN GPS SATELLITES IN RANGE The satellite screen displays a graph of the sky and visible GPS satellites in orbit. The graph to the side shows the relative signal strength of each satellite.	SETTINGS MENU DETAILED SETTINGS AND USER GUIDE The Settings Menu is where Voyager Pro is customized to your needs. You can access the settings menu from the main screens by pressing the menu button.



FEATURES:



The map screen is enabled with base maps, topography lines, hill shading, and some trails. Record or load GPX trails and riding areas, and transfer to a PC using the MicroSD card. Voyager Pro comes loaded with North American maps, but other map regions can be downloaded for free.



Amongst the major features is Buddy Tracking. Buddy Tracking uses localized radio signals and can support up to 20 riders in a single group. View members of your ride group on the map screen in real time, increase your following distances, and use the emergency beacon to summon your buddies. Cell reception is not required.



Voyager Pro is Bluetooth enabled for intercom, phone and media controls. Play songs from your phone or MicroSD card using a Bluetooth headset, speaker, or intercom. Two phones and two headsets can be connected at the same time.

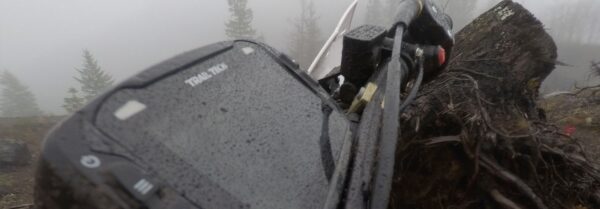

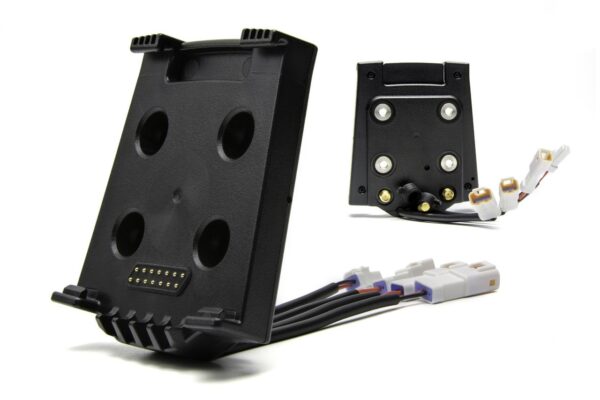

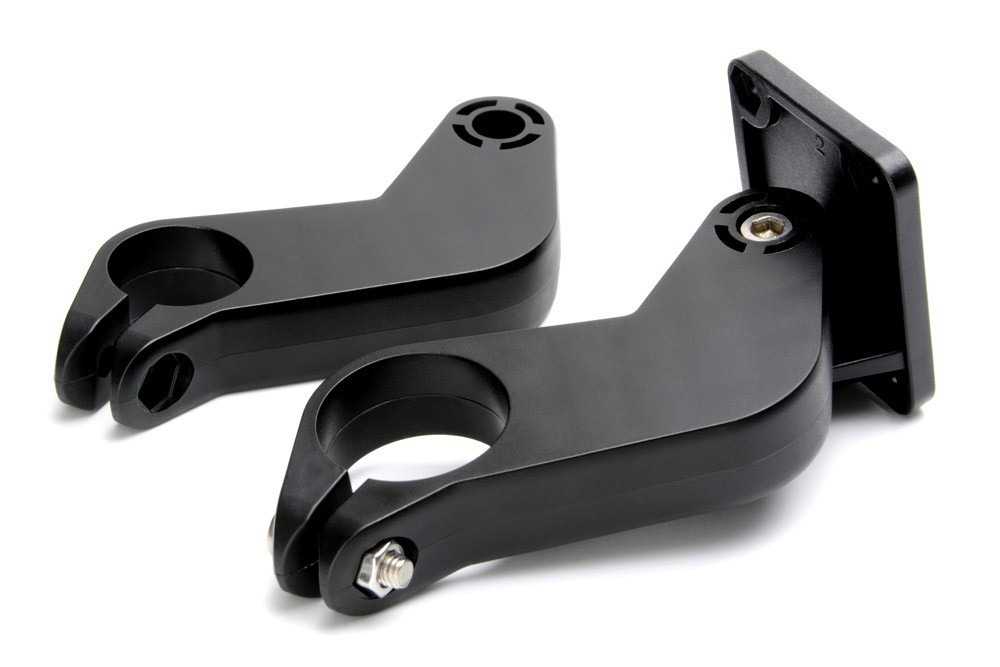

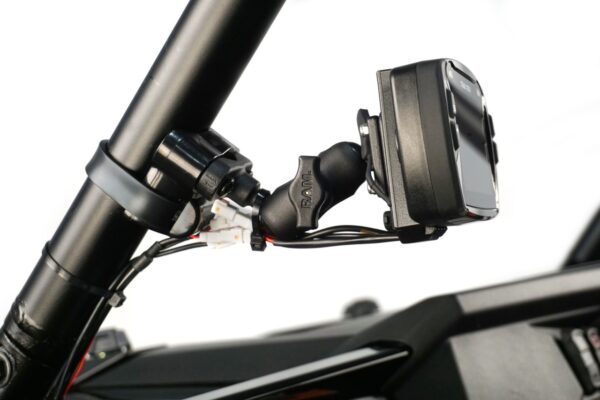

The 4” glove friendly color Touchscreen TFT Display is visible in all conditions, including direct sunlight. Sealed and rated IP67 for anti-dust/water intrusion, it’s built to withstand the harshest elements that come with extreme riding conditions. The mounting dock hard mounts to the dashboard, can be locked, and allows for quick removal of Voyager Pro from the machine. The dock utilizes the AMPs hole pattern, and is compatible with the full line of RAM  Mounts or Trail Tech mounting hardware.



Voyager Pro integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride data such as engine temperature, RPM, battery voltage, speed/distance and more.

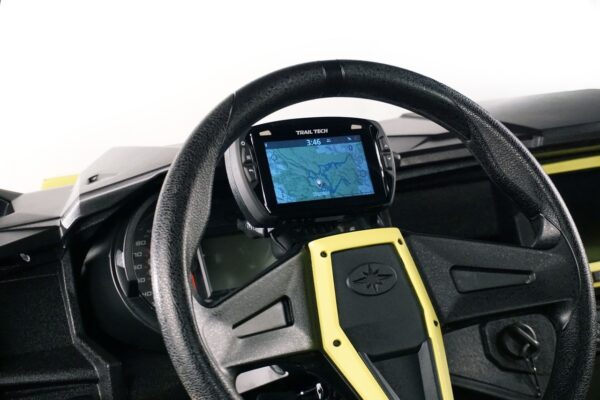

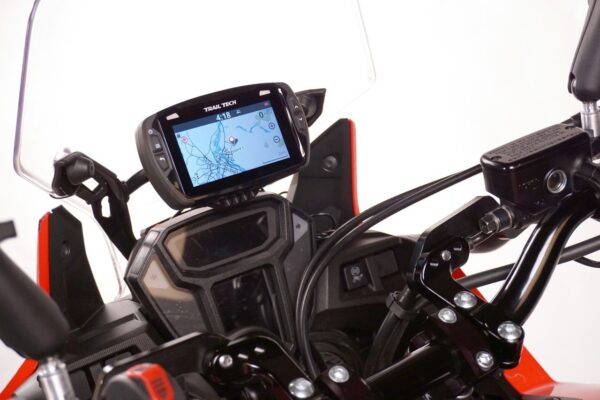

At 5.6 x 3.5 inches, Voyager Pro still fits on dirt bike dashboards, but is big enough to use on adventure bikes and UTVs. Voyager Pro’s mapping abilities and buddy tracking make it the premium choice for off-road riders.



Note: 12V DC power required, make sure your vehicle has a battery.



Voyager Pro Faq’s Located HERE

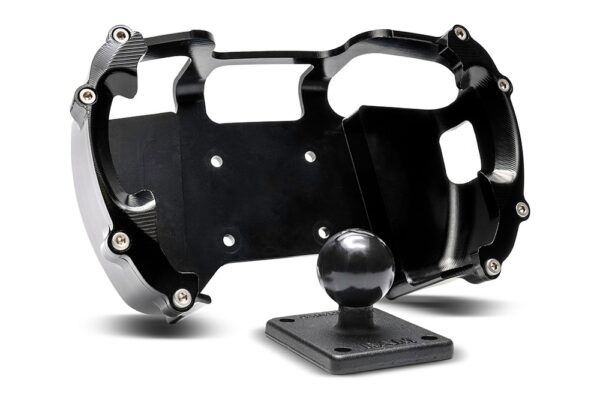

VP Billet Aluminum Protector Info HERE

VP Indicator Light Dashboard Info HERE

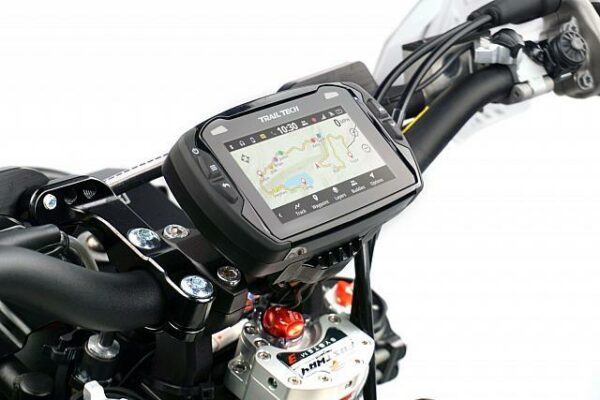

VP Billet Aluminum Center Mount Info HERE

VP Quick Release Docking Kit Info HERE



TRACKS & WAYPOINTS RECORD TRACKS GPX FILE IMPORT AND EXPORT DROP CUSTOMIZED WAYPOINTS SET WAYPOINTS AS DESTINATION PERSONALIZE MAP LAYER COLORS PLAN & RECORD ENTIRE TRAIL SYSTEMS

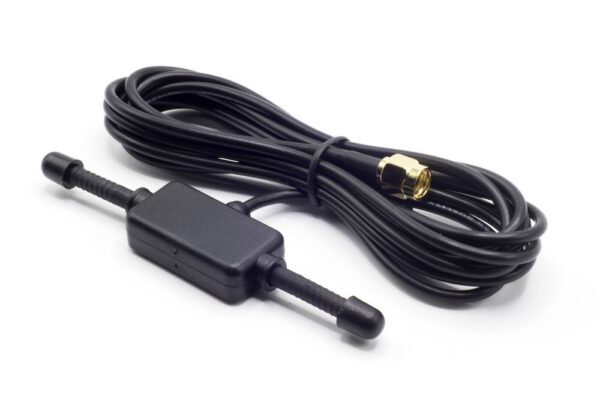

BUDDY TRACKING RIDE GROUP VISIBLE ON MAP UP TO 20 BUDDIES PER RIDE GROUP LONG RANGE (DEPENDING ON TERRAIN) EMERGENCY BEACON FLASHES RED ON FRIEND’S SCREENS PERSONALIZE YOUR BUDDY ICON COLOR AND NAME UPGRADE BUDDY ANTENNA FOR LONGER RANGE CELLULAR SERVICE NOT REQUIRED



FUNCTION DISPLAY RANGE SPEED SPD 0-320 KMH DISTANCE ODO 0-999,999 KM ELEVATION ELV 9,000 METER ENGINE TEMP ENG -40-210°C ACCUM. RUN TIME CLOCK 0-99,999 HR GPS RECORD RATE TIME / DISTANCE 1,2,5 SEC / 1,5,10 M

POWER DESCRIPTION EXTERNAL POWER INPUT 8V-16V DC INTERNAL BATTERY 3.7V 3100 MAH LI-ION BATTERY LIFE (TYPICAL USE) 1 HOUR BATTERY LIFE (100% BACKLIGHT) 45 MINUTES BATTERY CHARGE TIME 3-8 HOURS CHARGE TEMP RANGE 0°C-55°C

FEATURE DESCRIPTION ENVIRONMENTAL RATING IP67 MOUNTING PATTERN AMPS 30X38MM EXTERNAL MEMORY MICROSD UP TO 64GB INTERNAL MEMORY 32GB SCREEN 480X272PX 101MM DIAGONAL 50.5MM X 89.2MM PHYSICAL DIMENSIONS 144 X 90 X 47MM PHYSICAL WEIGHT 410G OPERATION TEMPERATURE 0-60°C STORAGE TEMPERATURE -20-80°C



Trail Tech PART #’s & KAWASAKI MODELS / YEARS LISTED BELOW
If you don’t see your specific model please contact us.



922-128	ALL YEARS	KLR 650
	2005-2017	BRUTE FORCE 650/750 4WD
922-126	2008-2018	KLX 140
922-133	2002-2008	KFX 400
	2007-2013	KFX 450
	1995-2008	KLX 300
	2007-2009	KLX 450R
	1995-2003	KX 125/250/500
	2004-2018	KX/KXF 125/250/450/500
	2000-1018	KLX 400
