Scotts Steering Stabilizer Kit KTM 790 Adventure / R

Description

Ready for a real steering stabilizer for your KTM 790 Adventure & Adventure R?

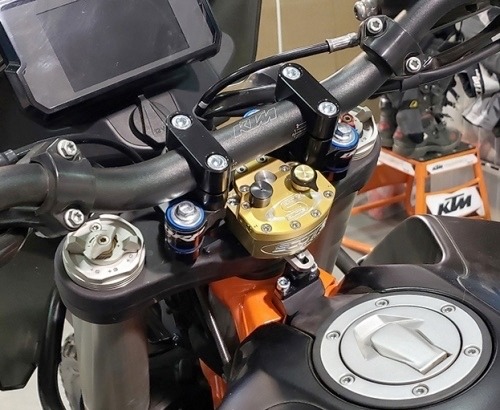

The Scotts Steering Stabilizer for the 790 Adventure models utilize a SUB mount with 8 rubber bushings to help eliminate vibration and fend off fatigue. The SUB mount opens up the cockpit and moves the handlebars approximately 25mm higher and 4.5mm forward from stock, typically a much more comfortable position for these bikes, especially when standing.



This is the same set up used by KTM on their factory Dakar Rally bikes.



Diminishes, and in some cases eliminates the harsh “hit” at the handlebars when hitting rocks and roots, and helps stabilize the bike at higher speeds over rough terrain.



Sub mounts also allow for more room above the handlebars for GPS, Enduro/Rally computers, roll charts etc. while retaining quick access for adjusting the stabilizer.



For those looking for even more performance or don’t want/need the increased height, we can dial you in even closer with FasstCo. Flexx Bars using a LOW bend to get you back to the stock height and a straighter SWEEP to get you up in the “Attack” position when standing or negotiating rough terrain.



Specs:

• Bike specific/easy installation (mounts to stock triple clamps, in position #3 only)
• 3 fully adjustable damping circuits, high/low speed & sweep, comes with tuning manual
• Helps reduce engine/chassis vibration and rider fatigue with interchangeable SOFT or MEDIUM rubber SUB-mount bushings.
• SUB-mount raises the bars 25mm (approximately 1″) & 4.5mm forward for more room sitting or standing.
• Used by top factory teams both on and off-road
• Choice of “Road” or “Off-Road” type stabilizer (See note below)
• Available as a FULL stabilizer kit, or mount only if you already have a Scott’s stabilizer.
• Made in the USA



Full Stabilizer Kit Includes:

• Owners Manual, frame bracket, tower pin, SUB mounted handlebar perches, stabilizer and all hardware including detailed, step by step, pictured instructions.  The SUB mount comes assembled with medium compound bushings and additional soft compound bushings are included.

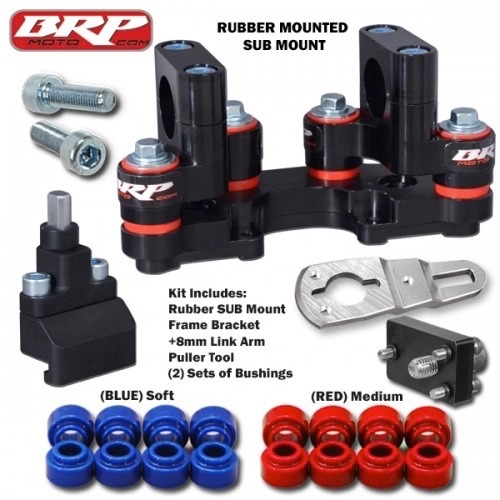

SUB-Mount only Kit Includes:

• Rubber SUB mount assembly, 2 piece frame bracket, tower pin and all necessary hardware. This is a rubber SUB mount to help reduce vibration to the hands and rider fatigue. It mounts to the stock triple clamp. Also included is the special plus 8mm stepped link arm, link arm puller to remove existing arm from your damper and additional soft compound rubber bushings.



Notes:

Looking for a specific bar bend? Low, high, MTB straight? We can get you just about any bar height and sweep you’re looking for with FasstCo. Flexx Bars in a custom or specific bend (Windham, Carmicheal etc.). This can make a huge difference in rider comfort and fatigue, especially if you have any existing shoulder, elbow, or wrist injuries. For more info on Flexx Bars go here.



If you are looking for another brand of bar we can help put that together too, just call or email us here.



We also offer a large knob for the slow speed circuit of the stabilizer. The large knob was designed to be used primarily on bikes with oversize handlebars or with bars that do not have a crossbar, however, it is possible to use this knob on “crossbar-type” bars as long as there is enough clearance for it to physically fit, which is determined by where the crossbar is, relative to the stock knob. Many bikes with crossbars require the smaller knob as the large knob will not clear the crossbar. The larger knob makes it much easier to make quick changes on the fly.



The Large Knob price includes all the parts required to make it functional on your existing stabilizer, including a new stainless steel spring and ball for your base valve, and Allen wrenches.



Stabilizer Security Bolt Kit available here.



Stabilizer Types: On or OFF-ROAD



You have the option of selecting either a “road type stabilizer” or an “off road stabilizer”. Road type stabilizers have rebound damping, meaning the unit dampens back to center, a preference that most road riders prefer. An Off-Road stabilizer has free rebound damping, meaning it dampens from the center out but is free rebound back to center. This feature was designed to keep the rider from fighting the damping forces when correcting for slides, common to dirt riding, and helps prevent “arm pump” for aggressive riders. This is an option only found on Scotts Stabilizers. Because this model can be used in either scenario, we offer the option of either stabilizer. If you are not sure which you want, select the version that you will spend most of your time riding with. Rest easy as they both work superb in either application, they are just better suited for their specific uses and we try to give you options to suit your specific needs. If you’re still not sure, just give us a call and we can help you.
